WifiLight MR16 Mk8

Its very easy to get hold of a wifi-controlled lightbulb that plugs into an Edison Screw (E27) fitting or a Bayonette fitting (B22).. It is possible to get some IR remote controlled GU10 light fittings.. But what about an ESP8266-powered wifi-enabled light fitting to go into an MR16 socket?

With this in mind I have set out to develop such a product.

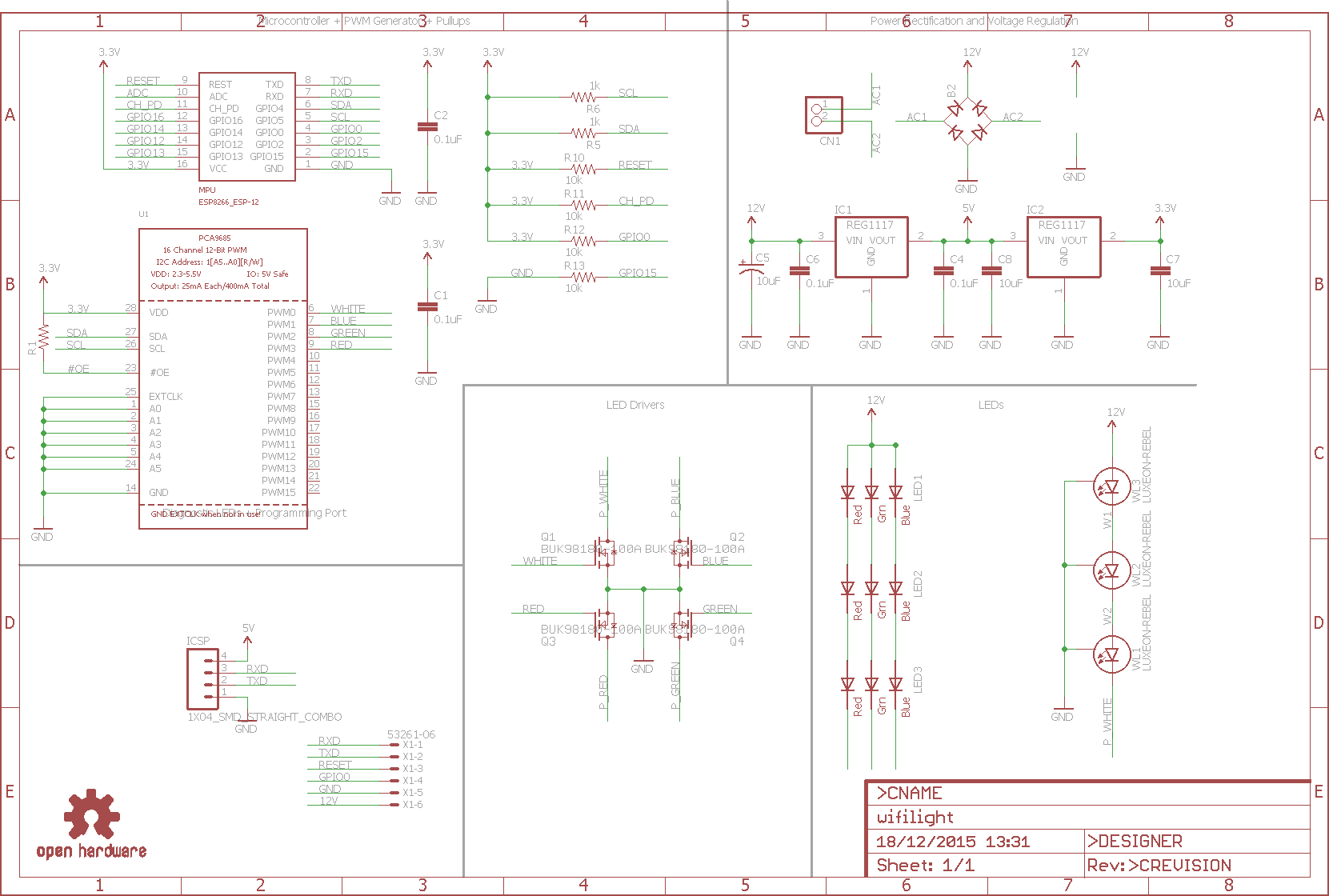

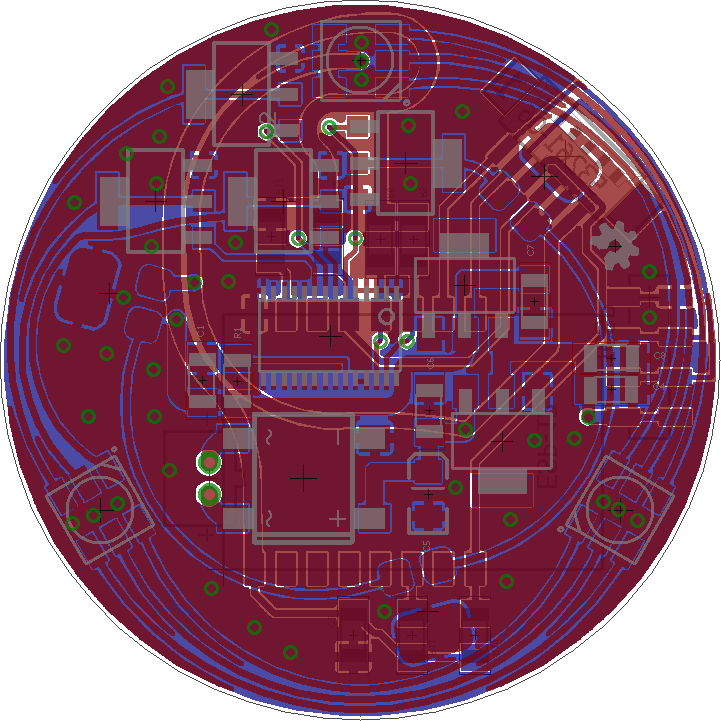

alt text alt text

Programming Harness

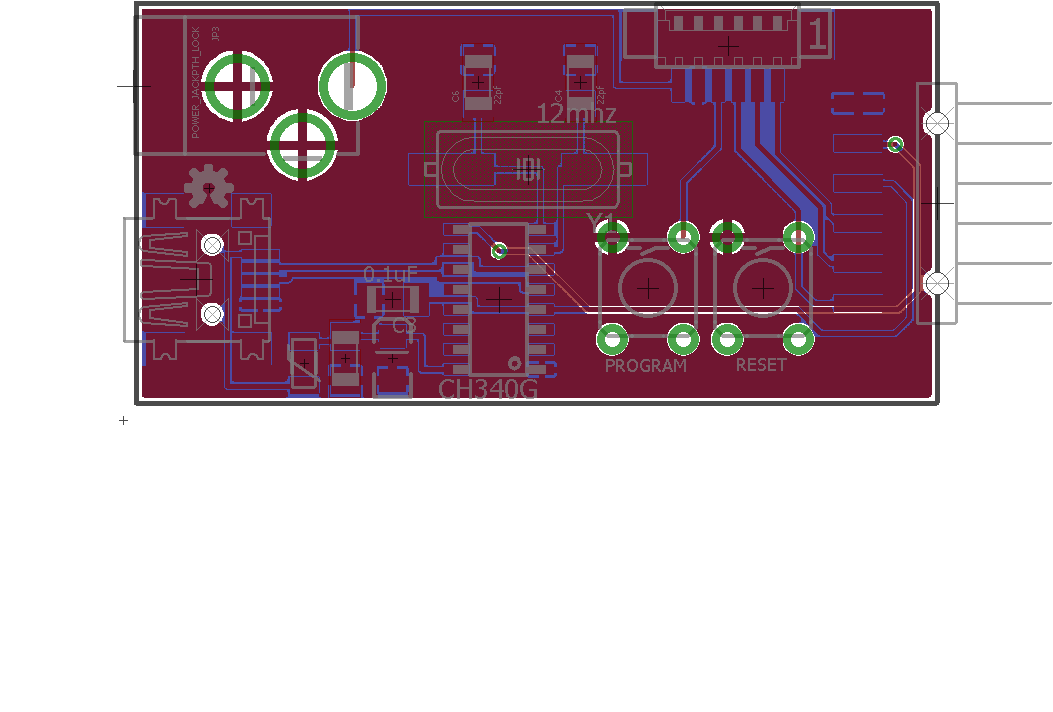

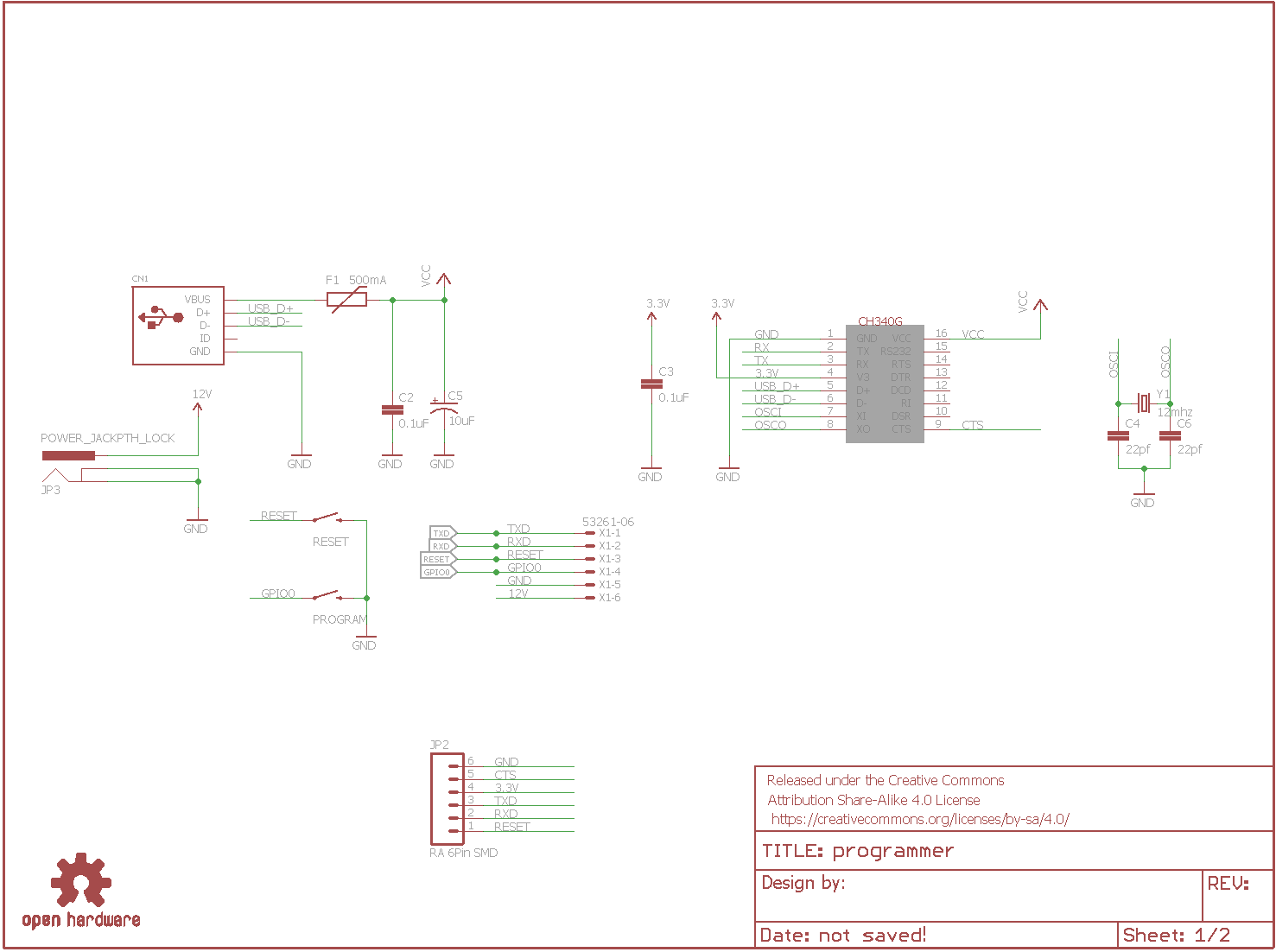

To make it easy to program the ESP9266 via the 1.5mm JST socket, I designed a FTDI-based programmer. I have also attached a SMD 6 pin header that works just like any other FTDI serial USB device to make it useful beyond the life of this project.

alt text alt text

Licence

Creative Commons License
This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License.

May be re-licenced on request.
